Vertical transporter for variable height panels

Mobile shifting equipment designed to deliver panels from assembly tables to individual stack trays.

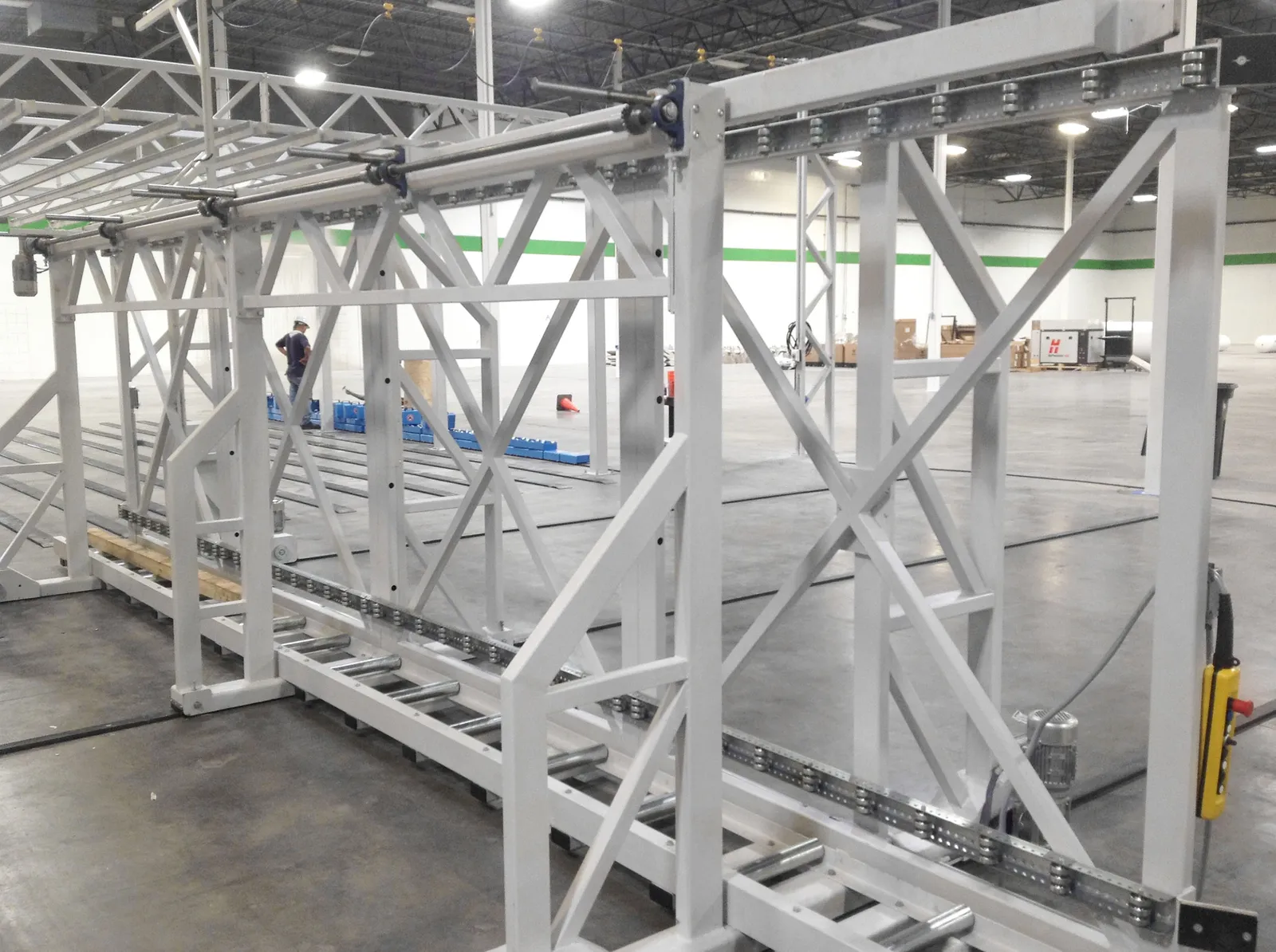

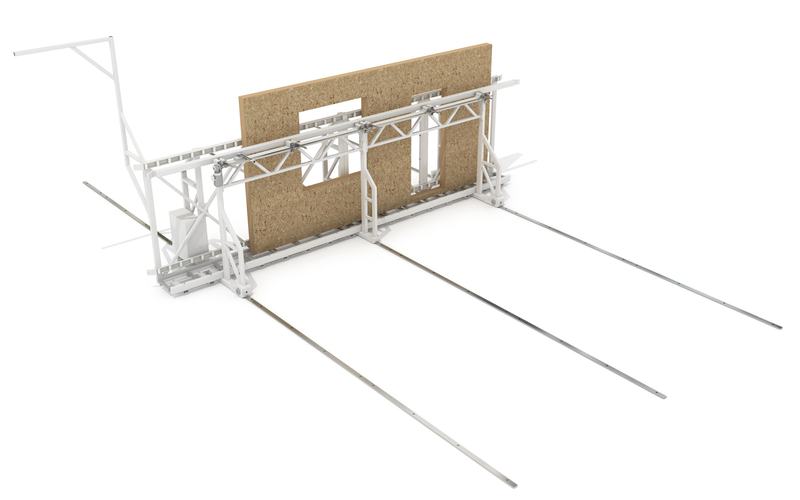

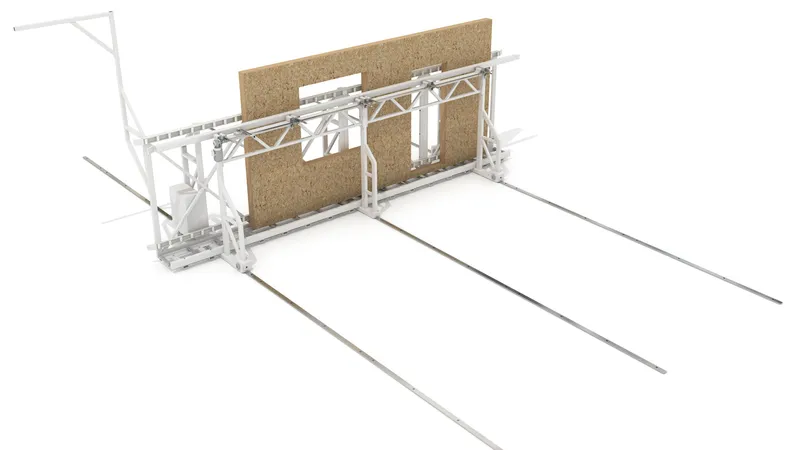

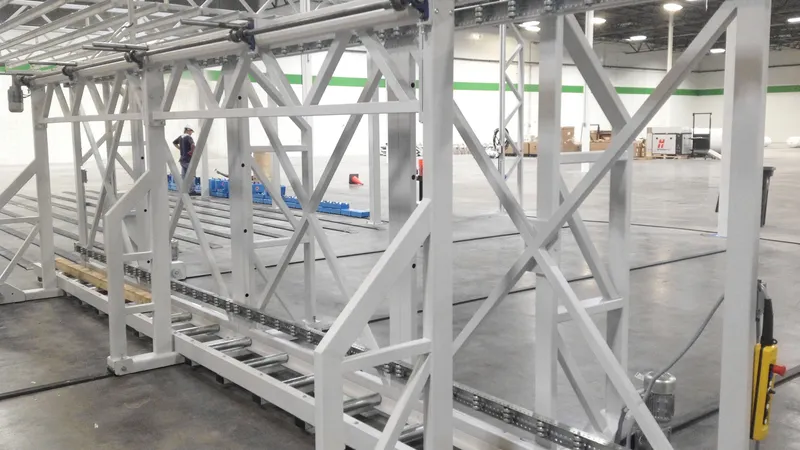

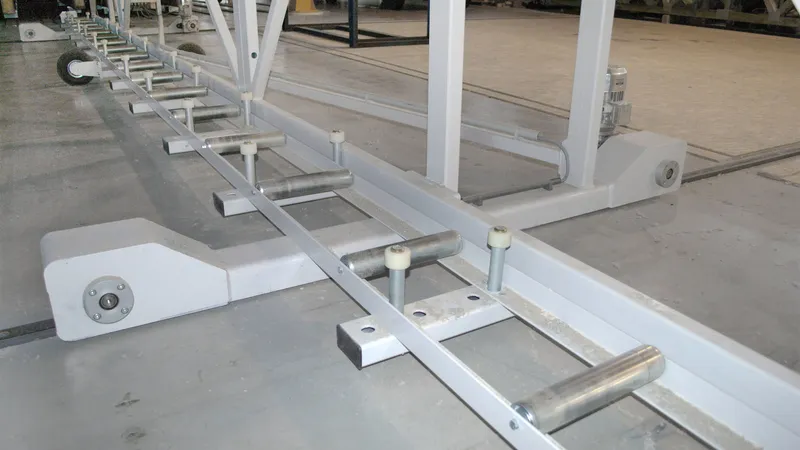

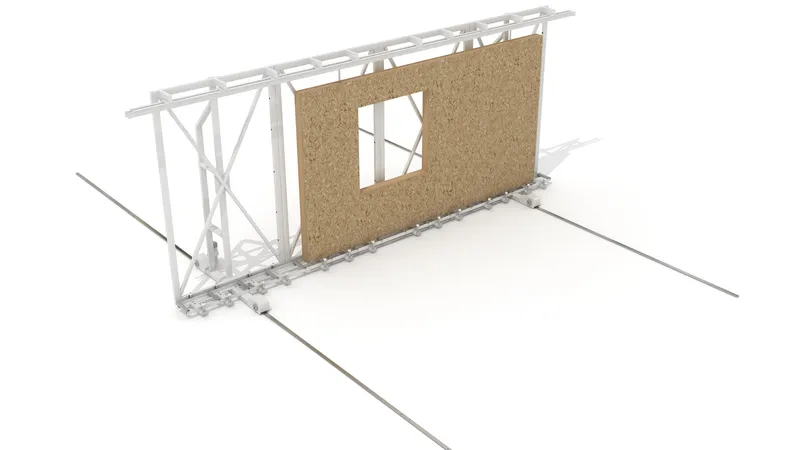

The structure consists of a steel welded frame which moves along a transverse track. The panel is manually pushed into the frame and transversely moved to the designated position by an electric motor.

• Working length 6m - 9m - 12m
• Motorised movement along transverse tracks
• Smooth electronically controlled feed rate control
• Control panel is relocatable
• Load capacity 2000 kg
